| A Solving vehicle turntable for rotating and positioning cars. |
|
Easy and efficient handling of car components using a Solving air bearing transporter. |
|
A Solving Automated Guided Vehicle, AGV, system is used in the assembly of private cars. |
 |
|
 |
|
 |
| An air bearing transporter for moving and positioning rigs. |
|
Solving air film beams for moving a high-tech crash barrier at a crash laboratory. |
|
An air film transport system for a movable test track for private cars and lorries. |
|
|
| |
| Trucks & Buses |
| Solving사의 Air Film기술 운반 장비는 트럭과 버스의 Demountables, 차축, 프레임의 조립 라인에서 사용되어 왔습니다. 또 Solving사의 운반 장비에 수작업의 편의를 위하여 Lifting Table 기능을 추가하여 사용하기도 합니다. |
|
 |
|
 |
|
 |
| Solving air film technology is incorporated into the assembly line for demountables. |
|
Handling of trailer frames in production using Solving air film technology. |
|
Air film handling system for moving bus chassis along an assembly line. |
 |
|
 |
|
 |
| Solving air bearing transporters are used in the assembly of axles to buses. |
|
A U-shaped assembly line used for the assembly of heavy trucks is half the length and faster than a conventional line. |
|
A Solving Coil handling transporter is designed to move steel coils weighing up to 10 tonnes. |
 |
|
 |
|
|
| Axle assembly carriers on air bearings used in truck production. |
|
Frame assembly carriers on air bearings used in truck production. |
|
|
|
|
| |
| Construction Equipment |
| 굴착기, 휠로더, 트랙터, 파쇄기를 생산할 때 유연한 조립을 위하여 Solving사의 Air Film 기술을 사용하고 있습니다. |
|
 |
|
 |
|
 |
| Solving air film transporters float 50-tonne crushers through the assembly line. |
|
Air film pallets are used in pairs for handling forest machines in production. |
|
A manual assembly line on air bearings for harvesters. |
 |
|
 |
|
 |
| An assembly line on air bearings for production of rock drilling equipment. |
|
Assembly rig on air bearings for moving tractors along an assembly line. |
|
Turntable on air bearings for turning 65-tonne excavators in the assembly line. |
 |
|
 |
|
 |
| Air film transporters, used in pairs, for moving wheel loaders between assembly stations. |
|
Assembly line on air bearings for handling wheel loaders weighing 25 tonnes. |
|
Air film-based assembly line for handling wheel loaders. |
|
|
| |
| Railways (rolling stock) |
| Air Film방식 또는 바퀴식의 Solving 운반시스템 중에서 고객주문형 대차 또는 자동항법 대차들에는 큰 기차의 조립 과정에서 운반이나 정확한 위치로의 이동에도 사용되고 있습니다. |
|
 |
|
 |
|
 |
| A remote-controlled air bearing assembly rig for handling train chassis weighing 15 tonnes. |
|
Movement solution on air bearings for the assembly of doors and machinery to railway carriages. |
|

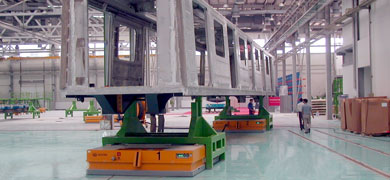

Sideway movement of railway carriages on air bearing transporters to final assembly, 35 tonnes. |
 |
|
 |
|
 |
| A Solving air bearing transporter has been installed to move carriages in railway reapair shops. |
|
Turntable on air bearings for handling railway bogies. |
|
Railway carriages are transported on air bearings between assembly, sand blasting and painting stations. |
 |
|
 |
|
|
| Air film-based assembly line for railway bogies weighing 23 tonnes. |
|
Metro cars and components are moved on both air bearings and wheels with the guidance of a painted line in the floor. |
|
|
|
|
| |
| Aerospace (aircraft) |
| Solving사의 Air Film 장비는 항공기 생산, 큰 항공기 날개, 항공기 정비에 사용되어 왔습니다. |
|
 |
|
 |
|
 |
| A tape-guided air film system has been installed for the assembly of fuselages and wings of aircraft. |
|
40-tonne aircraft wings are moved from the assembly area through inspection and into the paint plant on a Solving air film system. |
|
Aero engines are moved through the maintenance and overhaul shop on Solving air film handling systems. |
 |
|
|
|
|
| An air film transporter from Solving is used for moving and rotating a defence aircraft safely and accurately forwards, backwards and sideways. |
|
|
|
|
|
|
 |
|
 |
|
 |
| An air film carousel used for the manufacture of umbilicals weighing up to 650 tonnes. |
|
Telescopic forklift transporter on air bearings for handling cable drums up to 3,6 m in diameter. |
|
An air film carousel used as a storage basket for a 702-metre spare umbilical for the offshore industry. |
 |
|
 |
|
 |
| Cable baskets are easily moved on a Solving Air Film Mover from carousel to storage. |
|
Production carousel for umbilicals, 750 tonnes. |
|
Storage carousel for umbilicals, 1200 tonnes. |
 |
|
 |
|
|
| Moving 200-tonne wire rope drums between the production and storage areas using a Solving air film transport system. |
|
Cable reels are easily moved on a Solving air bearing handling system. |
|
|
|
|
